LED Neon Flex

LED Neon Flex Top View-S：10X10 IP68 Solid Waterproof

LED Neon Flex Lights feature a flexible design, gentle emitting ,high color consistency, IP68 waterproof .Applications include marine lighting, underwater lighting, outdoor deck lighting, shop mall lighting, and architectural lighting.

LED Neon Flex Top View-S：10X10 IP68 Solid WaterproofPRICE QUOTING
Home Product LED Neon Flex

Specifications

(1)Waterproof IP68 and IK08.
(2)Fully encapsulated with PU, can be used underwater.and more in the depth up to 2m
(3)UV protected, yellowing resistance, solid and weather resistant for outdoor lighting.
(4)Solvents and sea water resistant.
(5)Multiple colors option, white, WW-CW, RGB and RGBW.

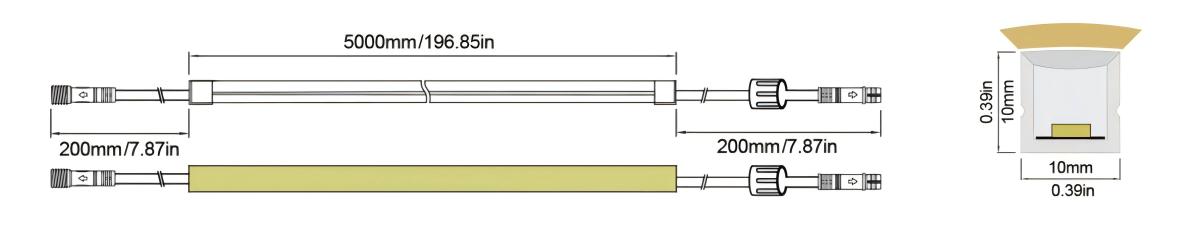

LED Neon Flex Top View-S：10X10 IP68 Solid Waterproof Technical Specifications

LED Neon Flex Top View-S：10X10 IP68 Solid Waterproof

Model No. Colour LED
Model 		LEDs/M CCT/
Wavelength 		Power
(W/M) 		Lumens
(lm/M) 		CRI Minimum
Cutting
Length(mm) 		FPC
Width
(mm) 		Maximum
connection
length
 NF-C27144C-AT 2700K 2835  144  2600-2800 10.0  700  90  41.67  6  12M
 NF-C30144C-AT 3000K 2835  144  2850-3300 10.0  710  90  41.67  6  12M
NF-C40144C-AT 4000K 2835  144  3850-4400 10.0  720  90  41.67  6  12M
NF-C50144C-AT 5000K 2835  144  4800-5400 10.0  720  90  41.67  6  12M
NF-C65144C-AT 6500K 2835  144  5600-7000 10.0  710  90  41.67  6  12M
 NF-CRE144C-AT Red 2835  144  620-625nm 10.0  225  一 41.67  6  12M
 NF-CGR144C-AT Green 2835  144  520-525nm 10.0  289  一 41.67  6  12M
 NF-CBL144C-AT Blue 2835  144  460-465nm 10.0  163  一 41.67  6  12M
 NF-CYE144C-AT Yellow 2835  144  590-595nm 10.0  378  一 41.67  6  12M
 NF-CPI144C-AT Pink 2835  144  一 10.0  386  一 41.67  6  12M
NF-COR144C-AT Orange 2835  144  600-610nm 10.0  208  一 41.67  6  12M
NF-CTW120C-AT WW-CW 2835  120  2700-6500 2*8 465  90  50  6  10M
NF-GRG120C-AT RGB 3535  120  RGB 12.0  323  一 50  6  7.5M

Specification Data
