LED霓虹灯带

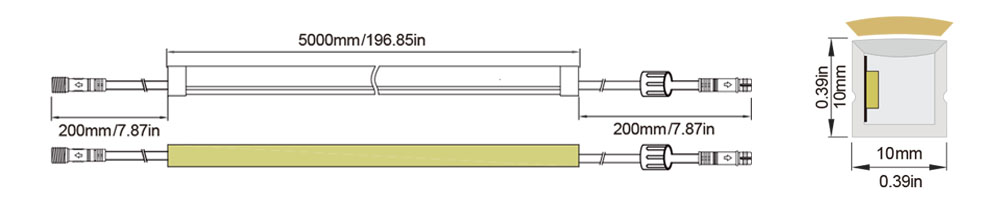

侧发光-S：10X10
LED 霓虹柔性灯带具有灵活性，发光均匀，IP68 防水等级。可应用于船用照明、水下照明、户外照明、商场照明和建筑照明。
LED 霓虹柔性灯带具有灵活性，发光均匀，IP68 防水等级。可应用于船用照明、水下照明、户外照明、商场照明和建筑照明。
| Model No. | Colour |
LED Model |
LEDs/M |
CCT/ Wavelength |
Power (W/M) |
Lumens (lm/M) |
CRI |
Minimum Cutting Length(mm) |
FPC Width (mm) |
Maximum connection length |
| NF-C27144C-AS | 2700K | 2835 | 144 | 2600-2800 | 10.0 | 560 | 90 | 41.67 | 6 | 12M |
| NF-C30144C-AS | 300OK | 2835 | 144 | 2850-3300 | 10.0 | 570 | 90 | 41.67 | 6 | 12M |
| NF-C40144C-AS | 4000K | 2835 | 144 | 3850-4400 | 10.0 | 575 | 90 | 41.67 | 6 | 12M |
| NF-C50144C-AS | 5000K | 2835 | 144 | 4800-5400 | 10.0 | 575 | 90 | 41.67 | 6 | 12M |
| NF-C65144C-AS | 6500K | 2835 | 144 | 5600-7000 | 10.0 | 568 | 90 | 41.67 | 6 | 12M |
| NF-CRE144C-AS | Red | 2835 | 144 | 620-625nm | 10.0 | 180 | 一 | 41.67 | 6 | 12M |
| NF-CGR144C-AS | Green | 2835 | 144 | 520-525nm | 10.0 | 232 | 一 | 41.67 | 6 | 12M |
| NF-CBL144C-AS | Blue | 2835 | 144 | 460-465nm | 10.0 | 134 | 一 | 41.67 | 6 | 12M |
| NF-CYE144C-AS | Yellow | 2835 | 144 | 590-595nm | 10.0 | 302 | 一 | 41.67 | 6 | 12M |
| NF-CPI144C-AS | Pink | 2835 | 144 | 一 | 10.0 | 309 | 一 | 41.67 | 6 | 12M |
| NF-COR144C-AS | Orange | 2835 | 144 | 600-610nm | 10.0 | 166 | 一 | 41.67 | 6 | 12M |
| NF-CTW120C-AS | WW-CW | 2835 | 120 | 2700-6500 | 2*8 | 372 | 90 | 50 | 6 | 10M |
| NF-GRG120C-AS | RGB | 3535 | 120 | RGB | 12.0 | 258 | 一 | 50 | 6 | 7.5M |
