LED Neon Flex

LED Neon Flex 3-Face View-L：16X15 IP68 Solid Waterproof

LED Neon Flex Lights feature a flexible design, gentle emitting ,high color consistency, IP68 waterproof .Applications include marine lighting, underwater lighting, outdoor deck lighting, shop mall lighting, and architectural lighting.

LED Neon Flex 3-Face View-L：16X15 IP68 Solid WaterproofPRICE QUOTING
Home Product LED Neon Flex

Specifications

(1)Waterproof IP68 and IK08.
(2)Fully encapsulated with PU, can be used underwater.and more in the depth up to 2m
(3)UV protected, yellowing resistance, solid and weather resistant for outdoor lighting.
(4)Solvents and sea water resistant.
(5)Multiple colors option, white, WW-CW, RGB and RGBW.

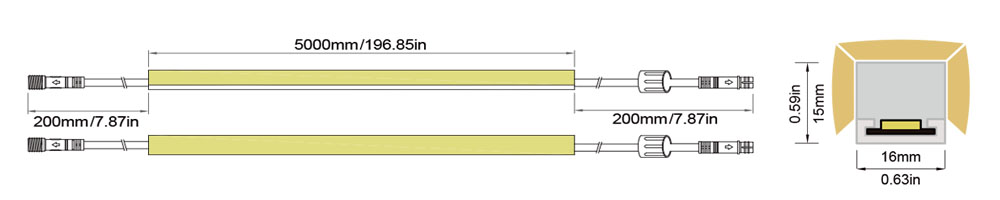

LED Neon Flex 3-Face View-L：16X15 IP68 Solid Waterproof Technical Specifications

LED Neon Flex 3-Face View-L：16X15 IP68 Solid Waterproof

Model No. Colour LED
Model 		LEDs/M CCT/
Wavelength 		Power
(W/M) 		Lumens
(lm/M) 		CRI Minimum
Cutting
Length(mm) 		 FPC
Width
(mm) 		Maximum
connection
length
NF-C27240C-CA 2700K 2835    240  2600-2800 12.0  788  90  25    10  15M
NF-C30240C-CA 3000K 2835    240  2850-3300 12.0  793  90  25    10  15M
NF-C40240C-CA 4000K 2835    240  3850-4400 12.0  802  90  25    10  15M
NF-CS0240C-CA 5000K 2835    240  4800-5400 12.0  803  90  25    10  15M
NF-C65240C-CA 6500K 2835    240  5600-7000 12.0  799  90  25    10  15M
NF-CRE240C-CA Red 2835    240  620-625nm 12.0  286  25    10  15M
NF-CGR240C-CA Green 2835    240  520-525nm 12.0  363  一 25    10  15M
NF-CBL240C-CA Blue 2835    240  460-465nm 12.0  181  一 25    10  15M
NF-CYE240C-CA Yelow 2835    240  590-595nm 12.0  640  一 25    10  15M
NF-CPI240C-CA Pink 2835    240  一 12.0  602  一 25    10  15M
NF-COR240C-CA Orange 2835    240  600-610nm 12.0  239  一 25    10  15M
NF-CTW240C-CA WW-CW 2835    240  2700-6500 2*10 635  90  50    10  12M
NF-GRG120C-CA RGB 3535    120  RGB 14.0  478  一 50    10  10M
NF-HRW096C-CA RGBW 5050    96  RGBW 16.0  602  一 62.5    12  7.5M
NF-HRW096C-CA RGBW 5050    96  Pixel RGBW 18.0  458  一 62.5    12  7.5M

Specification Data
