LED Neon Flex

LED Neon Flex Side View-L：16X15 IP68 Solid Waterproof

LED Neon Flex Lights feature a flexible design, gentle emitting ,high color consistency, IP68 waterproof .Applications include marine lighting, underwater lighting, outdoor deck lighting, shop mall lighting, and architectural lighting.

LED Neon Flex Side View-L：16X15 IP68 Solid WaterproofPRICE QUOTING
Home Product LED Neon Flex

Specifications

(1)Waterproof IP68 and IK08.
(2)Fully encapsulated with PU, can be used underwater.and more in the depth up to 2m
(3)UV protected, yellowing resistance, solid and weather resistant for outdoor lighting.
(4)Solvents and sea water resistant.
(5)Multiple colors option, white, WW-CW, RGB and RGBW.

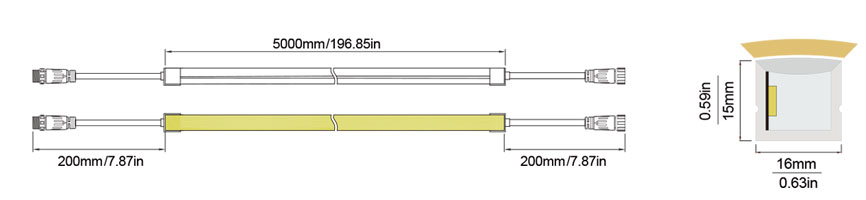

LED Neon Flex Side View-L：16X15 IP68 Solid Waterproof Technical Specifications

LED Neon Flex Side View-L：16X15 IP68 Solid Waterproof

Model No. Colour LED
Model 		LEDs/M CCT/
Wavelength 		Power
(W/M) 		Lumens
(lm/M) 		CRI Minimum
Cutting
Length(mm) 		FPC
Width
(mm) 		Maximum
connection
length
NF-C27140C-CS 2700K 2835  140  2600-2800 12.0  948  90  50  10  15M
NF-C30140C-CS 3000K 2835  140  2850-3300 12.0  960  90  50  10  15M
NF-C40140C-CS 4000K 2835  140  3850-4400 12.0  989  90  50  10  15M
NF-C50140C-CS 5000K 2835  140  4800-5400 12.0  997  90  50  10  15M
NF-C65140C-CS 6500K 2835  140  5600-7000 12.0  1008  90  50  10  15M
NF-CRE140C-CS Red 2835  140  620-625nm 12.0  288  一 50  10  15M
NF-CGR140C-CS Green 2835  140  520-525nm 12.0  383  — 50  10  15M
NF-CBL140C-CS Blue 2835  140  460-465nm 12.0  204  一 50  10  15M
NF-CYE140C-CS Yellow 2835  140  590-595nm 12.0  630  一 50  10  15M
NF-CPI140C-CS Pink 2835  140  一 12.0  572  一 50  10  15M
NF-COR140C-CS Orange 2835  140  600-610nm 12.0  258  一 50  10  15M
NF-CTW240C-CS WW-CW 2835  240  2700-6500 2*8 631  90  50  10  12M
NF-GRG120C-CS RGB 3535  120  RGB 12.0  388
一 		50  10  10M
