SMD 5050 Series

LED Strip light 5050-60D-10MM-24V IP20-IP65-IP66-IP67-IP68

LED Strip with wide beam angle and high output lumen.So,it is wonderfully suitable for uniform linear lighting of every room.
Even for those who want to let their creativity run wild with strips,our LED Strip is suitable as well.
High color rendering and high flexibility give you a plenty of scope and bring art to your wall with light.
Simply bend the LED Strip into the desired shape and attach it to your wall with accessories.

LED Strip light 5050-60D-10MM-24V IP20-IP65-IP66-IP67-IP68PRICE QUOTING
Home Product SMD 5050 Series

Specifications

(1).High quality and high brightness SMD LED chip.
(2).Variety of monochromatic lights for option including Red,Green,Blue,Yellow,Pink,Orange,Violet and whitelight.
(3).Flat profile,good choice for recessed mounting.
(4).Environmentally friendly&energy efficient.
(5).High color consistency.
(6).Perfect softness,gentle emitting,Not dazzling.
(7).3-5 years warranty.

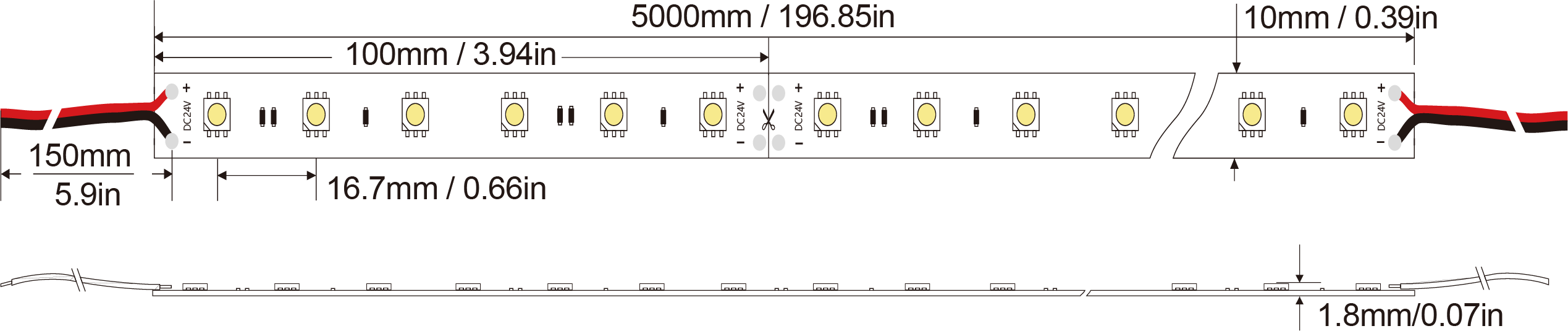

LED Strip light 5050-60D-10MM-24V IP20-IP65-IP66-IP67-IP68 Technical Specifications

LED Strip light 5050-60D-10MM-24V IP20-IP65-IP66-IP67-IP68

IP20 10*1.8 IP65 10*2.8 IP66 12.5*4 IP67 11.5*4 IP68 12*5
Model No. CCT Lumens
（lm/M）
±10% 		Weight
（g/Roll） 		Lumens
（lm/M）
±10% 		Weight
（g/Roll） 		Lumens
（lm/M）
±10% 		Weight
（g/Roll） 		Lumens
（lm/M）
±10% 		Weight
（g/Roll） 		Lumens
（lm/M）
±10% 		Weight
（g/Roll）
**-H27060C 2700K 885 138 820 248 760 313 820 320 820 412
**-H30060C 3000K 895 138 830 248 770 313 830 320 830 412
**-H40060C 4000K 910 138 845 248 782 313 845 320 845 412
**-H50060C 5000K 930 138 865 248 800 313 865 320 865 412
**-H65060C 6500K 950 138 883 248 815 313 883 320 883 412

Specification Data
