SMD 3528 Series

LED Strip light 3528-120D-8MM-12v IP20-IP65-IP66-IP67-IP68

LED Strip with wide beam angle and high output lumen.So,it is wonderfully suitable for uniform linear lighting of every room.
Even for those who want to let their creativity run wild with strips,our LED Strip is suitable as well.
High color rendering and high flexibility give you a plenty of scope and bring art to your wall with light.
Simply bend the LED Strip into the desired shape and attach it to your wall with accessories.

LED Strip light 3528-120D-8MM-12v IP20-IP65-IP66-IP67-IP68PRICE QUOTING
Home Product SMD 3528 Series

Specifications

(1).High quality and high brightness SMD LED chip.
(2).Variety of monochromatic lights for option including Red,Green,Blue,Yellow,Pink,Orange,Violet and whitelight.
(3).Flat profile,good choice for recessed mounting.
(4).Environmentally friendly&energy efficient.
(5).High color consistency.
(6).Perfect softness,gentle emitting,Not dazzling.
(7).3-5 years warranty.

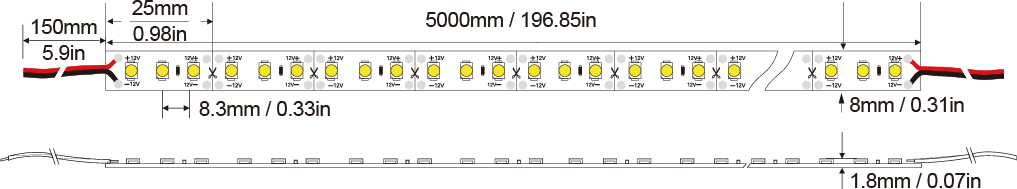

LED Strip light 3528-120D-8MM-12v IP20-IP65-IP66-IP67-IP68 Technical Specifications

LED Strip light 3528-120D-8MM-12v IP20-IP65-IP66-IP67-IP68

IP20 8*1.8 IP65 8*2.8 IP66 10.5*4 IP67 9.8*3.8 IP68 10.5*4.6
Model No. CCT Lumens
（lm/M）
±10% 		Weight
（g/Roll） 		Lumens
（lm/M）
±10% 		Weight
（g/Roll） 		Lumens
（lm/M）
±10% 		Weight
（g/Roll） 		Lumens
（lm/M）
±10% 		Weight
（g/Roll） 		Lumens
（lm/M）
±10% 		Weight
（g/Roll）
**-F27120B 2700K 760 135 706 223 655 296 706 272 706 390
**-F30120B 3000K 780 135 725 223 670 296 725 272 725 390
**-F40120B 4000K 800 135 744 223 688 296 744 272 744 390
**-F50120B 5000K 820 135 762 223 705 296 762 272 762 390
**-F65120B 6500K 840 135 780 223 722 296 780 272 780 390

Specification Data
