SMD 3030 Series

LED Strip light 3030-60D-10MM-24V IP20-IP65-IP66-IP67-IP68

LED Strip with wide beam angle and high output lumen.So,it is wonderfully suitable for uniform linear lighting of every room.
Even for those who want to let their creativity run wild with strips,our LED Strip is suitable as well.
High color rendering and high flexibility give you a plenty of scope and bring art to your wall with light.
Simply bend the LED Strip into the desired shape and attach it to your wall with accessories.

LED Strip light 3030-60D-10MM-24V IP20-IP65-IP66-IP67-IP68PRICE QUOTING
Home Product SMD 3030 Series

Specifications

(1).High quality and high brightness SMD LED chip.
(2).Variety of monochromatic lights for option including Red,Green,Blue,Yellow,Pink,Orange,Violet and whitelight.
(3).Flat profile,good choice for recessed mounting.
(4).Environmentally friendly&energy efficient.
(5).High color consistency.
(6).Perfect softness,gentle emitting,Not dazzling.
(7).3-5 years warranty.

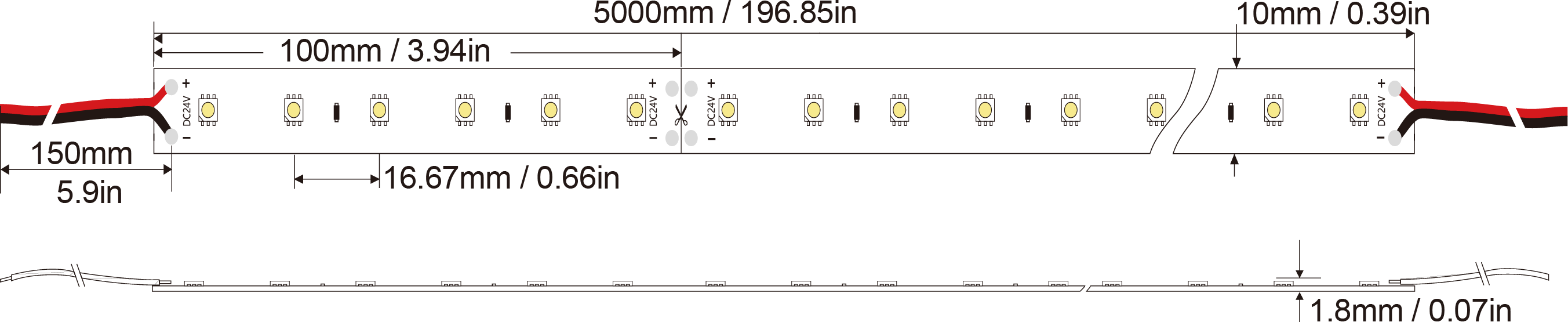

LED Strip light 3030-60D-10MM-24V IP20-IP65-IP66-IP67-IP68 Technical Specifications

LED Strip light 3030-60D-10MM-24V IP20-IP65-IP66-IP67-IP68

IP20 10*1.8 IP65 10*2.8 IP66 12.5*4 IP67 11.5*4 IP68 12*5
Model No. CCT Lumens
（lm/M）
±10% 		Weight
（g/Roll） 		Lumens
（lm/M）
±10% 		Weight
（g/Roll） 		Lumens
（lm/M）
±10% 		Weight
（g/Roll） 		Lumens
（lm/M）
±10% 		Weight
（g/Roll） 		Lumens
（lm/M）
±10% 		Weight
（g/Roll）
**-E27060C 2700K 1200 138 1115 248 1030 313 1115 320 1115 412
**-E30060C 3000K 1220 138 1135 248 1050 313 1135 320 1135 412
**-E40060C 4000K 1235 138 1150 248 1060 313 1150 320 1150 412
**-E50060C 5000K 1250 138 1162 248 1075 313 1162 320 1162 412
**-E65060C 6500K 1280 138 1190 248 1100 313 1190 320 1190 412

Specification Data
