SMD 3030 Series

LED Strip light 3030-36D-10MM-24V IP20-IP65-IP66-IP67-IP68

LED Strip with wide beam angle and high output lumen.So,it is wonderfully suitable for uniform linear lighting of every room.
Even for those who want to let their creativity run wild with strips,our LED Strip is suitable as well.
High color rendering and high flexibility give you a plenty of scope and bring art to your wall with light.
Simply bend the LED Strip into the desired shape and attach it to your wall with accessories.

LED Strip light 3030-36D-10MM-24V IP20-IP65-IP66-IP67-IP68PRICE QUOTING
Home Product SMD 3030 Series

Specifications

(1).High quality and high brightness SMD LED chip.
(2).Variety of monochromatic lights for option including Red,Green,Blue,Yellow,Pink,Orange,Violet and whitelight.
(3).Flat profile,good choice for recessed mounting.
(4).Environmentally friendly&energy efficient.
(5).High color consistency.
(6).Perfect softness,gentle emitting,Not dazzling.
(7).3-5 years warranty.

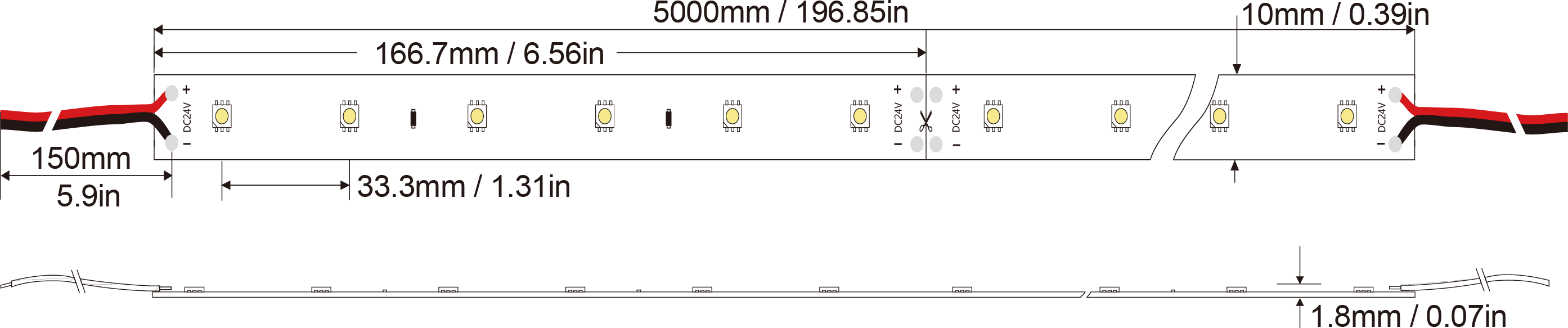

LED Strip light 3030-36D-10MM-24V IP20-IP65-IP66-IP67-IP68 Technical Specifications

LED Strip light 3030-36D-10MM-24V IP20-IP65-IP66-IP67-IP68

IP20 10*1.8 IP65 10*2.8 IP66 12.5*4 IP67 11.5*4 IP68 12*5
Model No. CCT Lumens
（lm/M）
±10% 		Weight
（g/Roll） 		Lumens
（lm/M）
±10% 		Weight
（g/Roll） 		Lumens
（lm/M）
±10% 		Weight
（g/Roll） 		Lumens
（lm/M）
±10% 		Weight
（g/Roll） 		Lumens
（lm/M）
±10% 		Weight
（g/Roll）
**-E27036C 2700K 700 135 651 245 605 310 651 318 651 410
**-E30036C 3000K 720 135 670 245 620 310 670 318 670 410
**-E40036C 4000K 735 135 683 245 630 310 683 318 683 410
**-E50036C 5000K 750 135 700 245 650 310 700 318 700 410
**-E65036C 6500K 770 135 715 245 660 310 715 318 715 410

Specification Data
