Product features:
(1) 360º circular light, flexible and free, simple and fashionable, arbitrary shape;
(2) 23mm diameter round silicone neon, no dark area, no blind spot, comfortable light feeling;
(3) Process material: high light transmittance, environmentally friendly silicone material, silicone extrusion molding process, IP65 protection level;
(4) Salt liquid resistance, acid and alkali resistance, corrosion resistance, flame retardant resistance, UV resistance;
(5) Working/storage temperature: Ta: -30~50℃ / 0℃～60℃;
2. Application scenarios: office lighting, decorative lighting, art lighting, modeling lighting
3. Product model and parameters:
D23, power 15W/m, material, fumed silica gel, section diameter 23mm

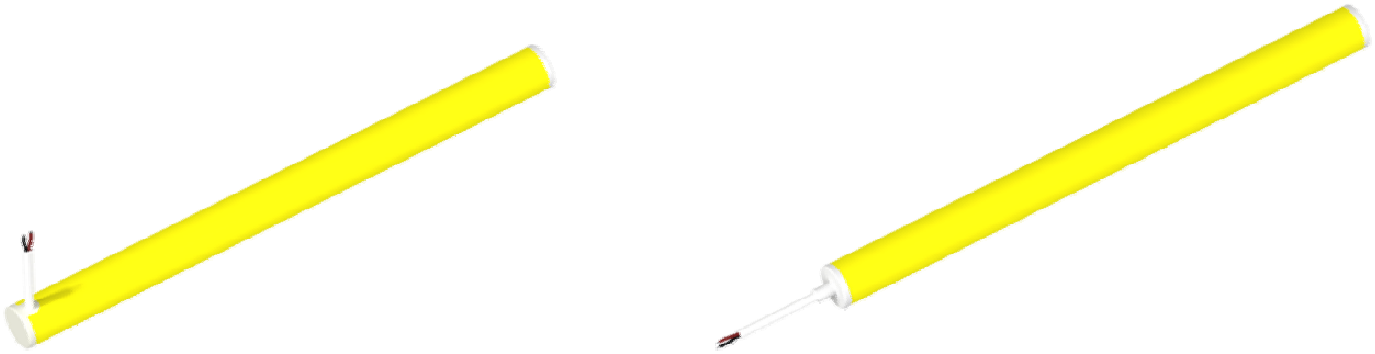

4. Product outlet method:
5. Product application:
|
Products Code
|
Description
|
|
Length
|
Notes
|
|
AS-D23-N-PC-0025
|
surface mount snap
Fixed installation
|
|
1~5M
|
Standard accessories,
With screws
|
AS-D23-U1-AC-0100
/0250
|
Vertical ceiling installation
|
|
1M or 2.5M
|
Optional accessories
|
|
AS-D23-T-AS-0100/ 0250
|
Vertical hanging installation
|
|
1M or 2.5M
|
Optional accessories
|
|
AS-D23-W-IC-0030
|
Can be styled and installed
|
|
1~5M
|
Optional accessories
|
|
AS-D23-U2-AC-XXX X
|
Both ends of the light strip
Ceiling installation
|
|
1~5M
|
Optional accessories
|
|
AS-D23-O-AS-XXXX
|
Full circle stitching line stitching
|

|
1~5M
|
Optional accessories
|
|
AS-D23-I-AS-0100/ 0250
|
Horizontal installation
|
|
1M
|
Optional accessories
|
|
AS-D23-N-PC-0100
|
Horizontal ceiling installation
|

|
1~5M
|
Optional accessories
|
6. Precautions for use
(1) This product is a low voltage product, please use a DC constant voltage isolated power supply to drive the LED light bar.
(2) In practical applications, the constant voltage power supply should reserve a margin of 20 (it is recommended to use only 80 of power) to ensure sufficient voltage to drive the product.
(3) Pay attention to whether the positive and negative poles of the drive power supply and the power cord are consistent, and do not connect them wrongly, so as to avoid product damage.
(4) During the installation process, please avoid scratching, twisting and irregular bending of the product, otherwise it may lead to the drop of waterproof level and cause irreparable damage to the product.
(5) In order to ensure the life and reliability of the light strip, please do not bend it in an arc with a diameter of less than 240mm. Too small bending radius will damage the product itself.
(6) The use of super-standard cascading lengths will lead to overloading and heating of the lamp strip, uneven voltage drop and brightness.
(7) Please install it by professionals to ensure safe use.
(8) It is strictly forbidden to use any acidic or alkaline adhesive to fix the product (including but not limited to glass glue, etc.).
(9) IP65 is not suitable for submerged environments.
(10) Different sizes of products under the same color temperature value, due to structural differences, the final color of the product is slightly deviated, please check the actual sample before use.
