In electronic or LED lighting products, we usually involves the IPXX waterproof and dustproof grade。IP(International Protection) rating system, drafted by the IEC(International Electro Technical Commission) , classifies luminaires according to their characteristics of dustproof, anti-intrusion, water resistance, and moisture resistance. IP protection level is composed of two numbers, the first number represents the lamp dustproof, prevent foreign objects invasion level;The second number represents the airtight degree that lamps and lanterns prevent moisture and waterproof invasion.A larger number indicates a higher protection level. The protection level indicated by the two numbers is shown in the following table:
Dustproof grade (the first X indicates)
0: no protection
1: prevent large solid invasion
2: prevent medium size solid invasion
3: prevent small solids from entering and invading
4: prevent solid objects larger than 1mm from entering
5: prevent harmful dust accumulation
6: completely prevent dust from entering
Waterproofing grade (second X)
0: no protection
1: Water drops into the shell have no impact
2: When the shell is tilted to 15 degrees, water drops into the shell have no impact
3: water or rain from the corner of 60 degrees to the shell has no impact
4: The liquid poured into the shell from any direction has no harm effect
5: Rinse with water without any harm
6: can be used in the cabin environment
7: water resistance in a short time (1m)
8: soaking water for a long time under a certain pressure

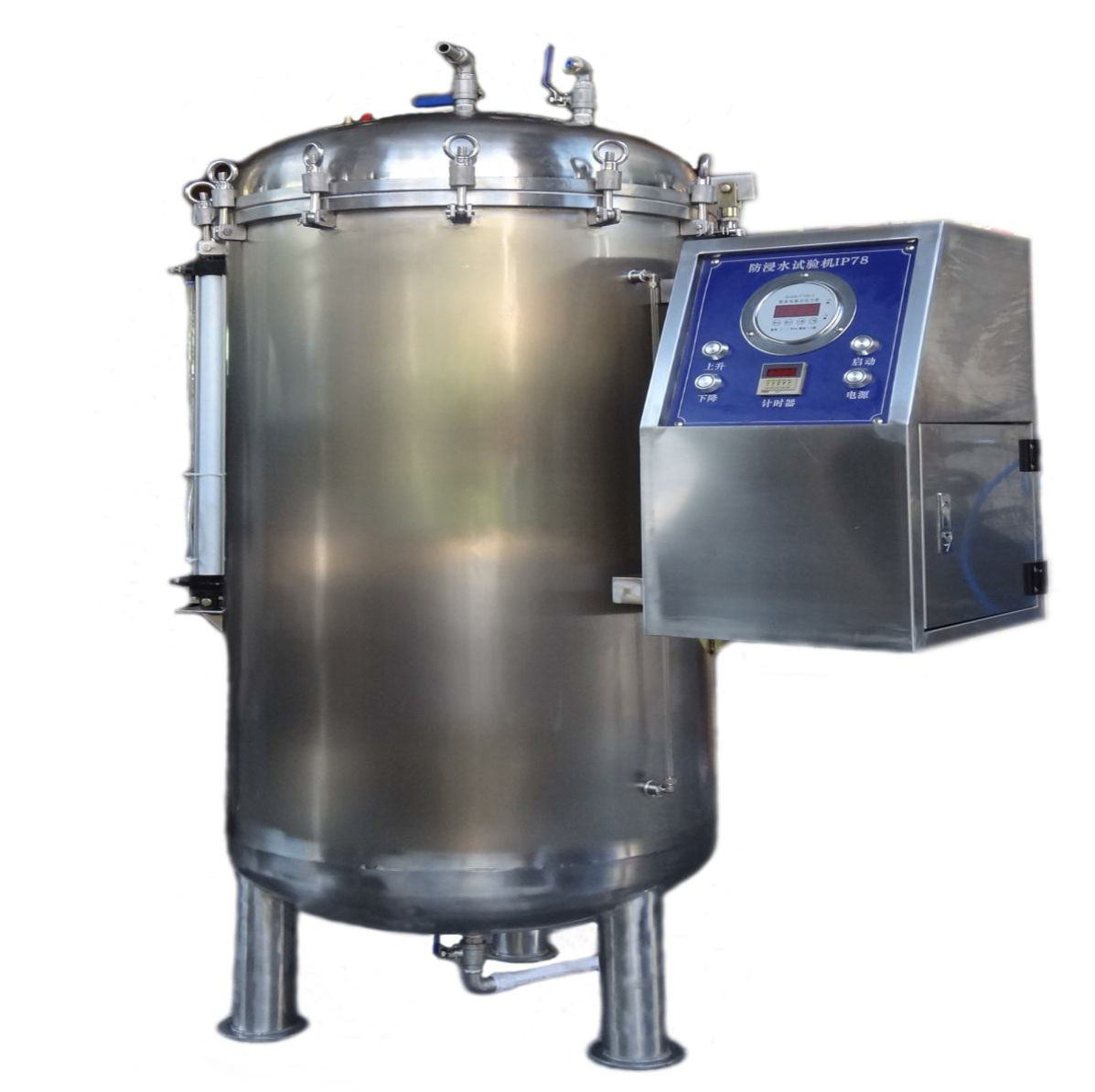

Most of Eastfine's neon strips have reached IP68 protection rating, are fully capable of being submerged and under pressure for long time working.In order to verify the manufacturing standards specified in IEC60529:1989+A1:1999, GB7000.1, GB10485-89, and the company is equipped with immersion experimental device, can carry out IPX8 continuous diving experiment.
